Stego Royale

Overview

Stego Royale is a multi-layer steganography challenge built around an MP4 file with several hidden layers. A simple strings search reveals a convincing fake flag, but the challenge prompt and metadata suggest that the first visible path is bait. The correct solve path splits the MP4 into secondary audio and video streams, reads a spectrogram clue, decodes frame-bit data from the second video stream, carves an appended ZIP archive, and finally decodes the extracted payload using XOR followed by zlib decompression.

Stage	Evidence / Action	Result
1	Run basic file and strings triage	Fake flag found; not accepted
2	Extract second audio stream and render a spectrogram	KEY=MIRRORDECK, STEP=37, XOR=3C
3	Decode the second video stream using STEP=37	TOKEN=GOLDENELIXIR and password rule
4	Carve ZIP appended after the EOF marker	eof_chest.zip contains crown.dat
5	Unzip, XOR with 0x3c, then zlib decompress	Real flag recovered

---

Tools Used

• file and strings for initial triage
• ffprobe for stream inspection
• ffmpeg for extracting the hidden audio stream and rendering a spectrogram
• Python 3 for video-bit decoding, ZIP carving, XOR, and zlib decompression
• unzip for listing and extracting the carved ZIP archive

---

Step 1 — Initial Triage: Fake Flag Discovery

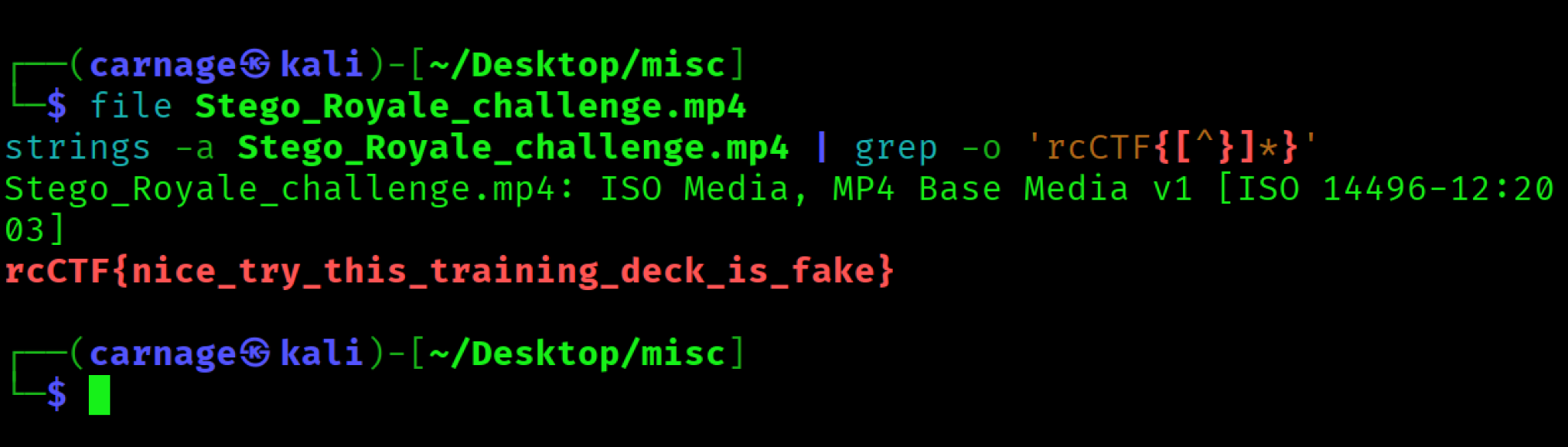

The first step was to inspect the MP4 and search for embedded flag-looking strings. This immediately revealed a fake flag.

strings -a Stego_Royale_challenge.mp4 | grep -o 'rcCTF{[^}]*}'

The discovered value was:

rcCTF{nice_try_this_training_deck_is_fake}

The wording nice_try and training_deck_is_fake matches the challenge hint that the first chest is bait. This confirms that deeper stream analysis is required.

---

Step 2 — Audio Stream Analysis: Spectrogram Clue

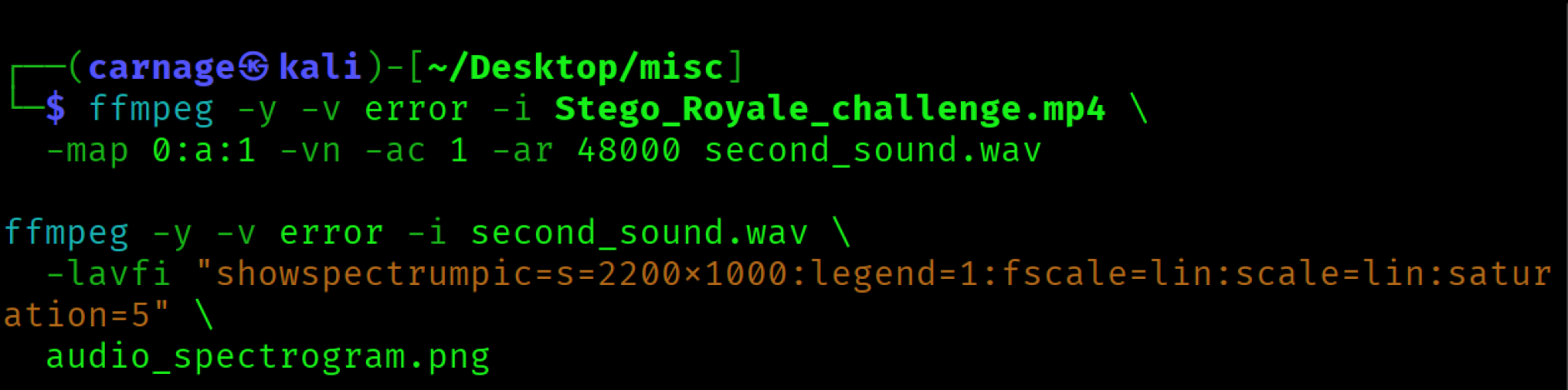

The MP4 contains an additional audio stream. The second audio stream was extracted as a mono WAV and converted into a spectrogram image.

ffmpeg -y -v error -i Stego_Royale_challenge.mp4 \
    -map 0:a:1 -vn -ac 1 -ar 48000 second_sound.wav

ffmpeg -y -v error -i second_sound.wav \
    -lavfi "showspectrumpic=s=2200x1000:legend=1:fscale=lin:scale=lin:saturation=5" \

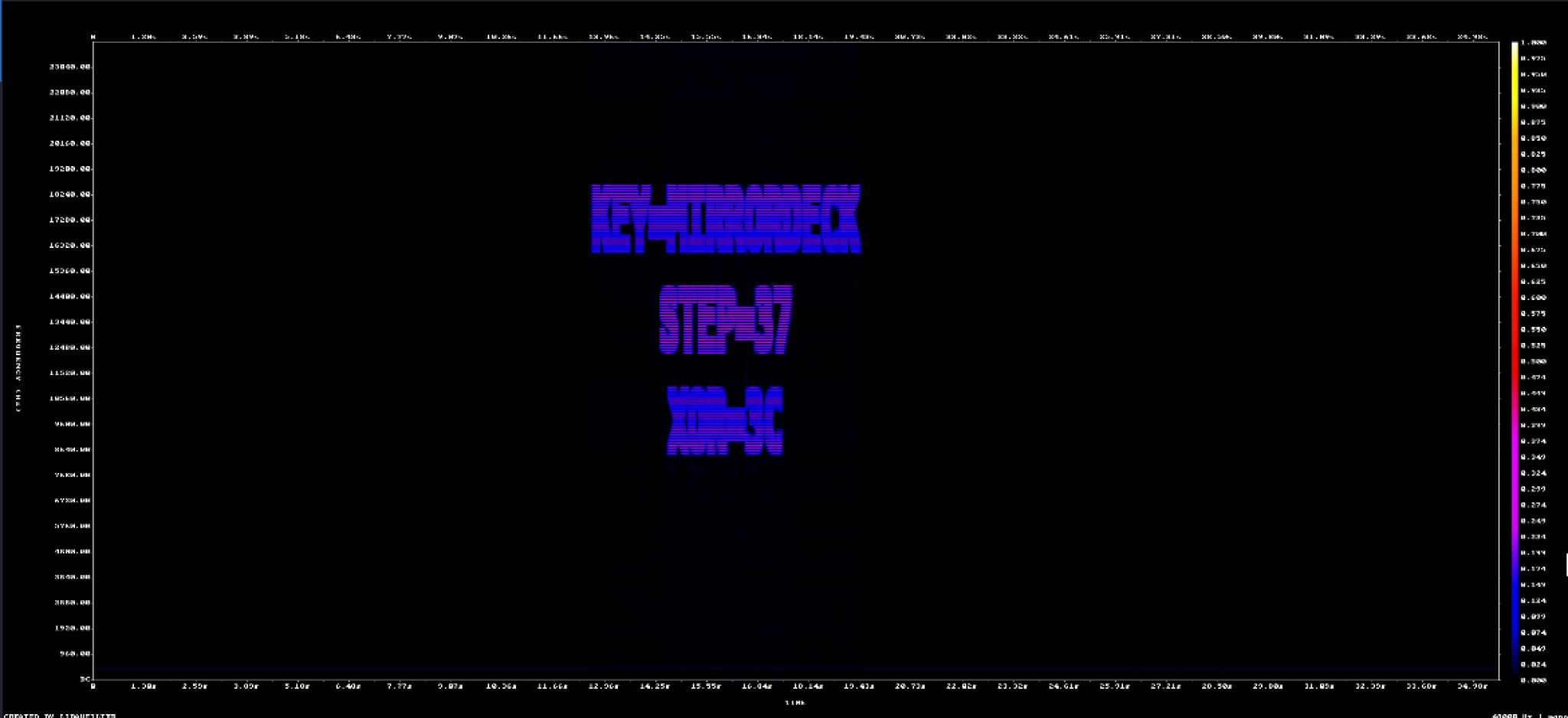

The spectrogram provides three critical values:

KEY=MIRRORDECK
STEP=37
XOR=3C

---

Step 3 — Video Stream Analysis: Frame-Bit Decoder

The value STEP=37 from the spectrogram tells us to inspect every 37th frame in the second video stream. A Python decoder reads brightness blocks near the bottom-right region of those frames and reconstructs ASCII characters.

python3 decode_video_clue.py Stego_Royale_challenge.mp4

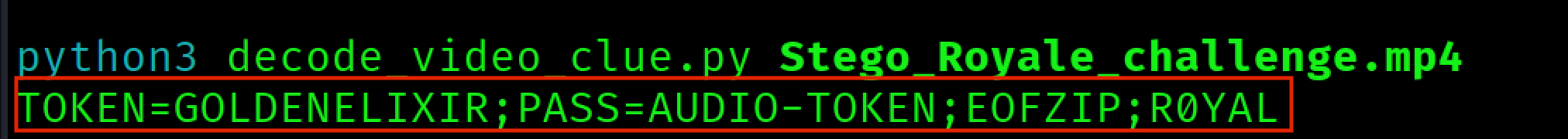

The decoded video clue was:

TOKEN=GOLDENELIXIR;PASS=AUDIO-TOKEN;EOFZIP;R0YAL

Clue	Meaning
KEY=MIRRORDECK	First half of the ZIP password
TOKEN=GOLDENELIXIR	Second half of the ZIP password
PASS=AUDIO-TOKEN	Join the audio key and video token with a hyphen
XOR=3C	XOR byte used after extracting crown.dat

Recovered ZIP password: MIRRORDECK-GOLDENELIXIR

---

Step 4 — EOF ZIP Carving

The video clue includes EOFZIP, indicating that the payload is appended after the MP4 data. The ZIP was carved by locating the marker CRCHESTv1:EOFZIP and then writing the bytes starting at the ZIP local header PK\x03\x04.

from pathlib import Path

mp4 = Path('Stego_Royale_challenge.mp4')
data = mp4.read_bytes()

marker = b'CRCHESTv1:EOFZIP'
marker_offset = data.index(marker)
zip_offset = data.index(b'PK\x03\x04', marker_offset)

Path('eof_chest.zip').write_bytes(data[zip_offset:])

print('marker offset:', marker_offset)
print('zip offset:', zip_offset)
print('wrote eof_chest.zip')

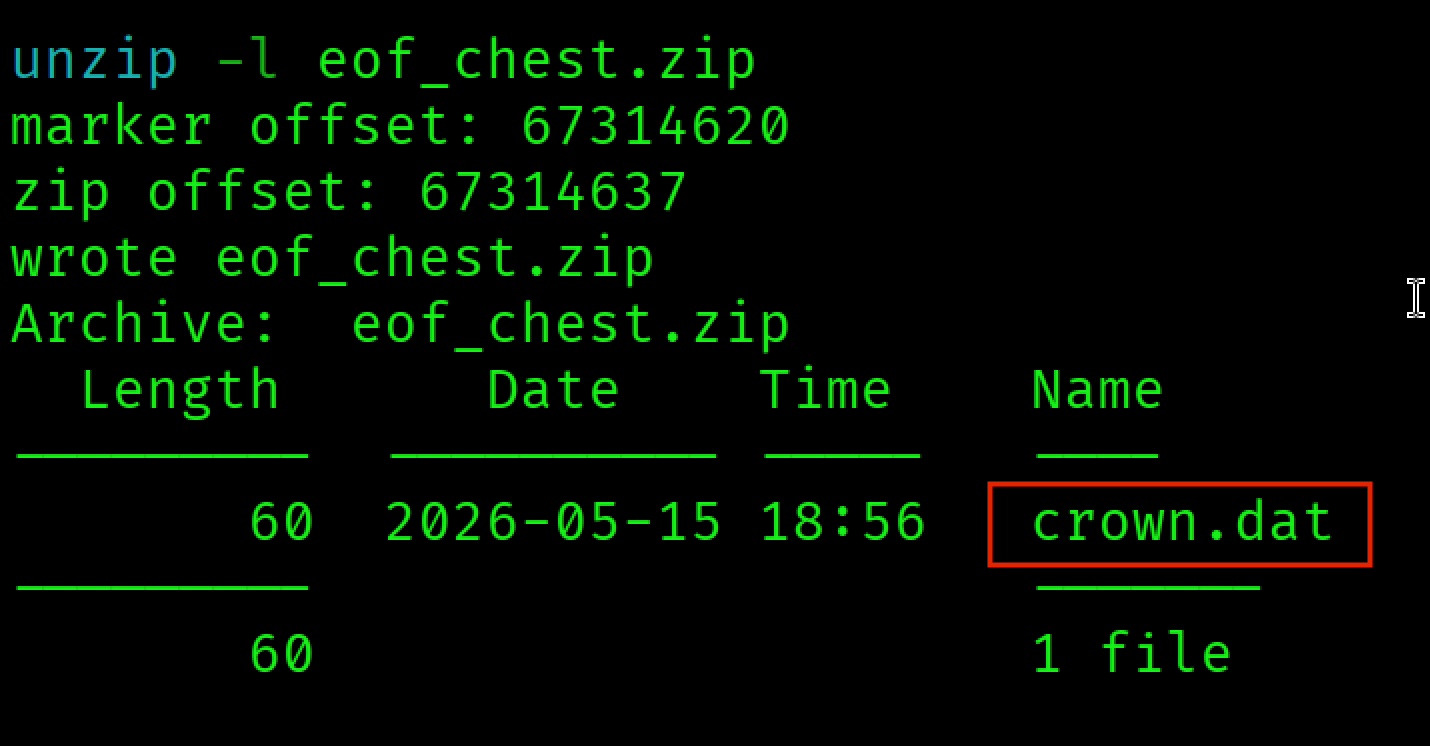

unzip -l eof_chest.zip

---

Step 5 — ZIP Extraction

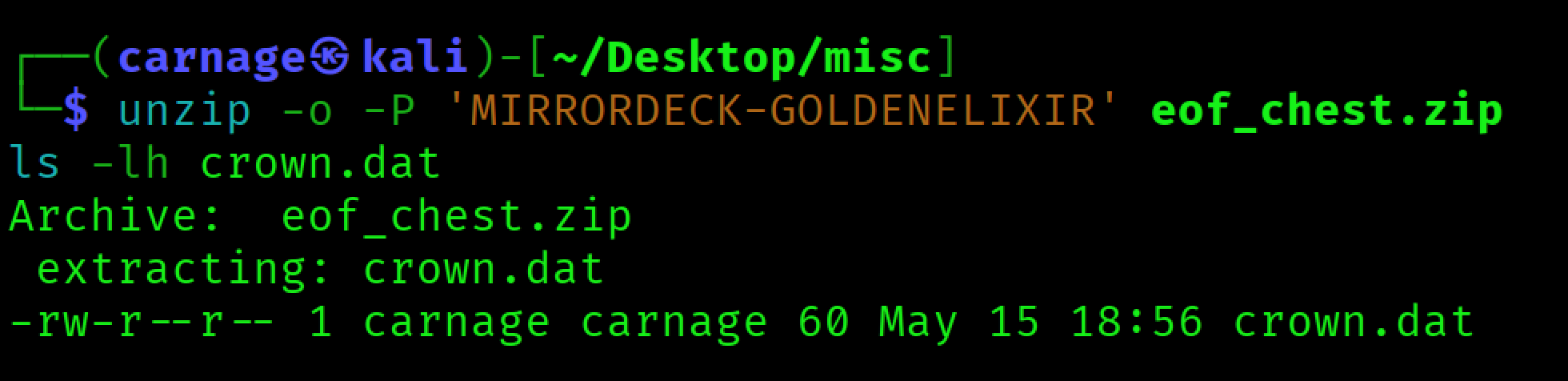

Using the combined password from the audio and video clues, the carved archive successfully extracts crown.dat.

unzip -o -P 'MIRRORDECK-GOLDENELIXIR' eof_chest.zip
ls -lh crown.dat

---

Step 6 — Final Payload Decode

The extracted file begins with the magic bytes RCRL. The remaining bytes are XORed with 0x3c and then decompressed with zlib to reveal the plaintext payload.

from pathlib import Path
import zlib

blob = Path('crown.dat').read_bytes()

if blob[:4] != b'RCRL':
    raise SystemExit('bad crown.dat or wrong ZIP password')

xored = blob[4:]
decoded = bytes(b ^ 0x3c for b in xored)
plain = zlib.decompress(decoded).decode()

print(plain)

flag = plain.split('|', 1)[1]
crc = zlib.crc32(flag.encode()) & 0xffffffff

print()
print('FLAG:', flag)
print('CRC32:', f'{crc:08x}')

---

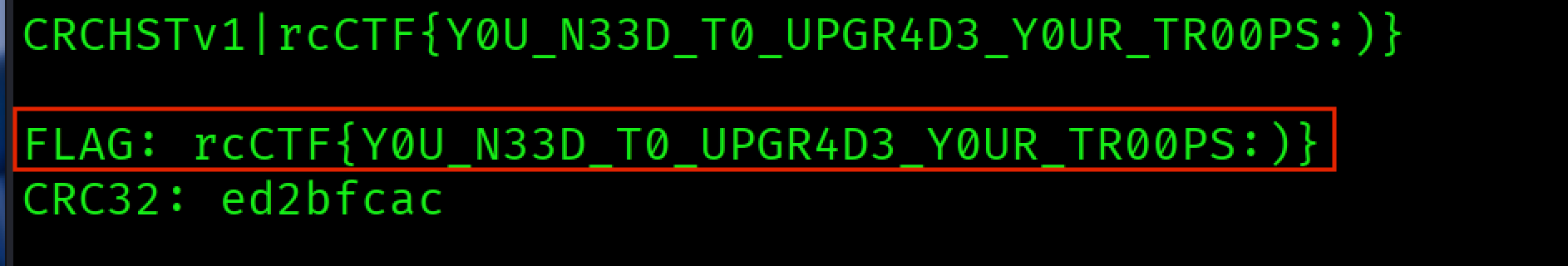

Flag

rcCTF{Y0U_N33D_T0_UPGR4D3_Y0UR_TR00PS:)}

CRC32: ed2bfcac

---

Compact Command Summary

# Stage 1: Find the fake flag
strings -a Stego_Royale_challenge.mp4 | grep -o 'rcCTF{[^}]*}'

# Stage 2: Extract and spectrogram the hidden audio stream
ffmpeg -y -v error -i Stego_Royale_challenge.mp4 \
    -map 0:a:1 -vn -ac 1 -ar 48000 second_sound.wav
ffmpeg -y -v error -i second_sound.wav \
    -lavfi "showspectrumpic=s=2200x1000:legend=1:fscale=lin:scale=lin:saturation=5" \

# Stage 3: Decode the video stream
python3 decode_video_clue.py Stego_Royale_challenge.mp4

# Stage 4: Carve the EOF ZIP
python3 - <<'PY'
from pathlib import Path
data = Path('Stego_Royale_challenge.mp4').read_bytes()
marker = b'CRCHESTv1:EOFZIP'
zip_offset = data.index(b'PK\x03\x04', data.index(marker))
Path('eof_chest.zip').write_bytes(data[zip_offset:])
PY

# Stage 5: Extract with password
unzip -o -P 'MIRRORDECK-GOLDENELIXIR' eof_chest.zip

# Stage 6: XOR + zlib decode
python3 - <<'PY'
from pathlib import Path
import zlib
blob = Path('crown.dat').read_bytes()
plain = zlib.decompress(bytes(b ^ 0x3c for b in blob[4:])).decode()
flag = plain.split('|', 1)[1]
print(flag)
PY
